TSA LOCK INSTRUCTIONS
WHAT IS A TSA LOCK?
WHAT IS A TSA LOCK?
TSA: TRANSPORT SECURITY ADMINISTRATION
TSA locks are required for all customers travelling to the USA. The TSA screens every passenger’s baggage before it is placed on the plane. At their discretion, from time to time, they choose to open a passenger’s luggage for closer inspection. When this occurs, if the luggage is fitted with any lock other than those approved by the TSA, they will destroy whatever lock is fitted to gain access.
Luggage locks approved by the TSA have a universal master key that will open the locks. Only the TSA have a copy of this master key. Every TSA approved lock has an identifying mark that shows it may be opened by the master key. All Samsonite TSA locks feature the red TSA logo.
RESETTING YOUR LOCK
- Have the lock set on your original combination.
- Repeat steps as described for each variation of lock (see below).
NEED ASSISTANCE?
Feel free in get in contact with us, our Customer Service team are available 9 AM - 6 PM Monday-Friday, email to Info.Malaysia@samsonite.com .
All locks are set to a default of 0-0-0 at the factory. If you’ve forgot your unique combination you are going to need assistance from a Samsonite Authorised Repair Centre to unlock your combination lock. To locate your nearest Repair Centre, please click here.
LOCK VARIATIONS
Please find your lock instructions below:
Top
TSA COMBINATION LOCKS
SET CODE TO 000
TURN 90°
PUSH DOWN
HOLD DOWN & SET CODE
PULL UP
TURN BACK TO LOCK POSITION
Top
FEATURED ON ENWRAP, ROBEZ, STEM AND TOIIS

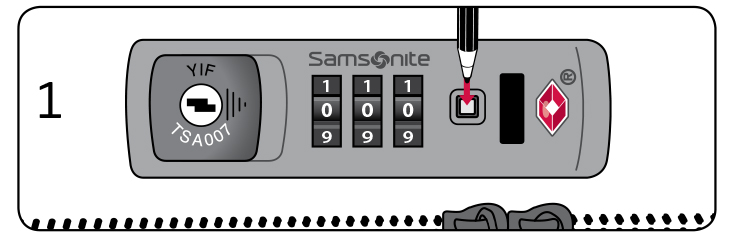

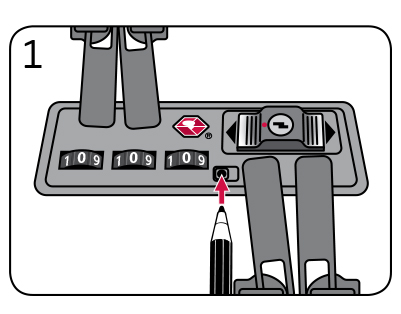

SET CODE TO 000 & PUSH IN BUTTON WITH PEN
REMOVE PEN, BUTTON WILL STAY PRESSED IN

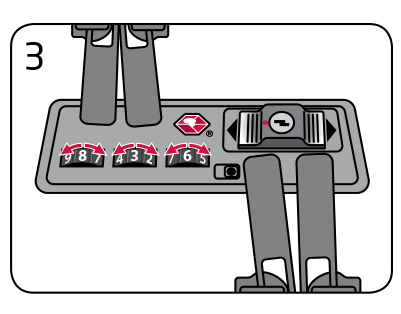

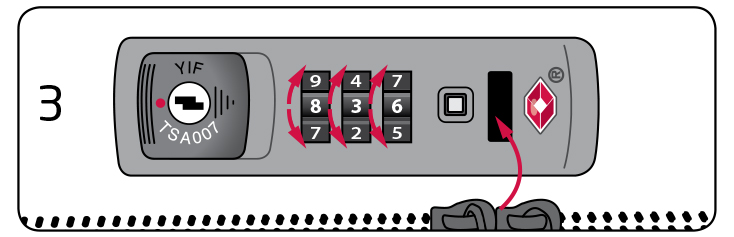

SET CHOSEN CODE

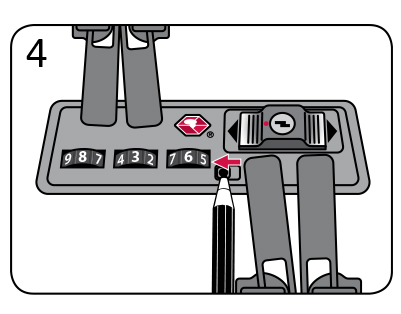

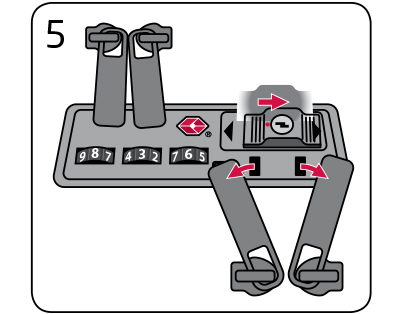

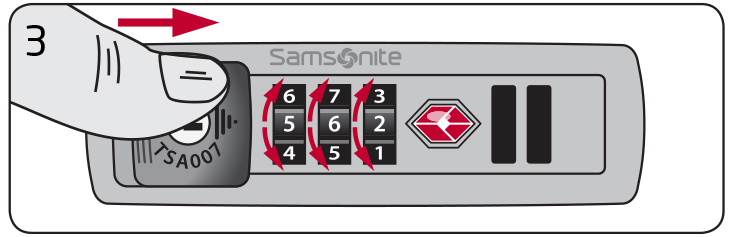

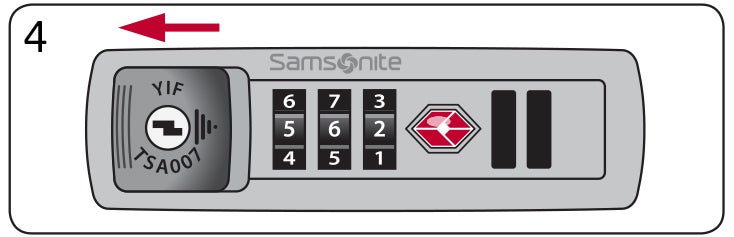

SLIDE BUTTON ACROSS TO SET CODE
Top
FEATURED ON LITE-BIZ

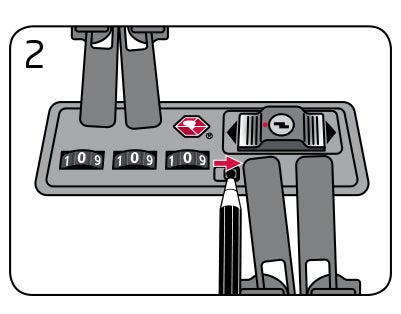

SET LOCK TO 000 & PUSH IN BUTTON WITH PEN
BUTTON AUTOMATICALLY STAYS PUSHED IN
SET CHOSEN CODE

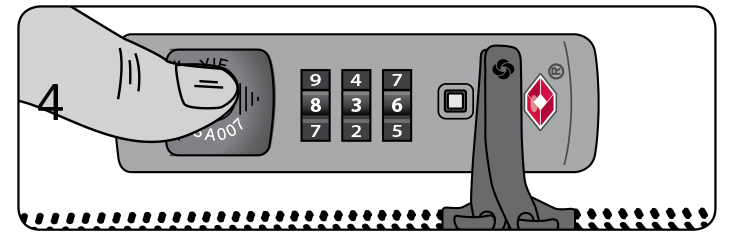

RELEASE BY PRESSING SIDE BUTTON
Top
FEATURED ON EVOA
SET CODE TO 000 & PUSH IN BUTTON WITH PEN
REMOVE PEN, BUTTON WILL STAY PRESSED IN
SET CHOSEN CODE
SLIDE BUTTON ACROSS TO SET CODE
Top
FEATURED ON BASE BOOST

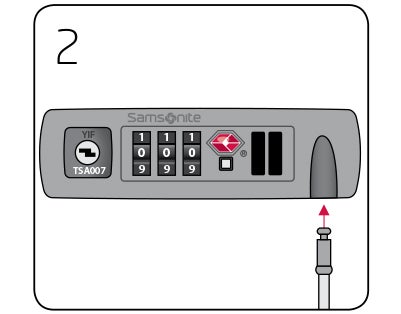

SET LOCK TO 000 & PUSH IN BUTTON WITH PEN
BUTTON AUTOMATICALLY STAYS PUSHED IN

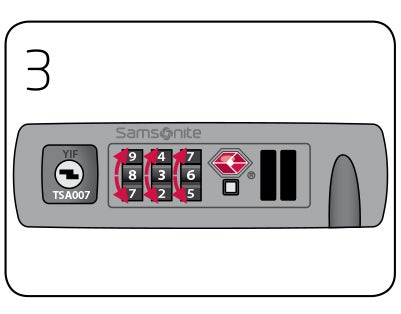

SET CHOSEN CODE
RELEASE BY PRESSING SIDE BUTTON
HOW TO SET THE CABLE LOCK
WEAVE THE CABLE THROUGH THE ZIP RINGS
SECURE CABLE INTO THE COMBINATION LOCK
Top
INFINIPAK
SET LOCK TO 000 & PUSH IN BUTTON WITH PEN
BUTTON AUTOMATICALLY STAYS PUSHED IN
SET CHOSEN CODE
RELEASE BY PRESSING SIDE BUTTON
HOW TO SET THE CABLE LOCK
WEAVE THE CABLE THROUGH THE ZIP RINGS
SECURE CABLE INTO COMBINATION LOCK
Top
FEATURED ON OCTOLITE AND PROXIS
SET LOCK TO 000 & PUSH IN BUTTON WITH PEN
BUTTON AUTOMATICALLY STAYS PUSHED IN
SET CHOSEN CODE
RELEASE BY PRESSING SIDE BUTTON
Top
LITE-SPHERE SPL
SET LOCK TO 000 & PUSH IN BUTTON WITH PEN
BUTTON AUTOMATICALLY STAYS PUSHED IN
SET CHOSEN CODE
RELEASE BY PRESSING SIDE BUTTON
HOW TO SET THE CABLE LOCK
WEAVE THE CABLE THROUGH THE ZIP RINGS
SECURE CABLE INTO COMBINATION LOCK
Top
FEATURED ON PLATINUM LITE AND MEMPHIS
SET CODE TO 000 & PUSH IN BUTTON WITH PEN
REMOVE PEN, BUTTON WILL STAY PRESSED IN
SET CHOSEN CODE
SLIDE BUTTON ACROSS TO SET CODE
Top
OCTOLITE SS AND SMARTTOP
SET LOCK TO 000 & PUSH IN BUTTON WITH PEN
BUTTON AUTOMATICALLY STAYS PUSHED IN
SET CHOSEN CODE
RELEASE BY PRESSING SIDE BUTTON
HOW TO SET THE CABLE LOCK
WEAVE THE CABLE THROUGH THE ZIP RINGS
SECURE CABLE INTO COMBINATION LOCK
Top
FEATURED ON ENGENERO AND SPIN TRUNK
SET CODE TO 000
CONTINUE HOLDING BUTTON AND SET CHOSEN CODE
PUSH BUTTON ACROSS AND HOLD
RELEASE BUTTON TO SET NEW CODE
Top
FEATURED ON LITE-LOCKED

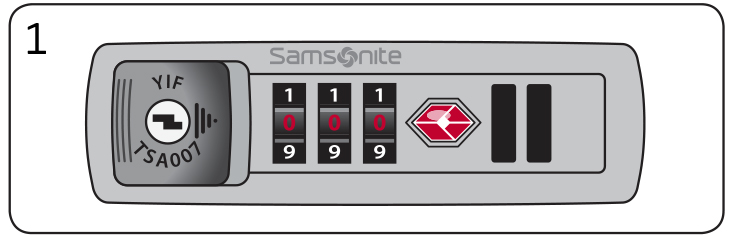

SET CODE TO 000

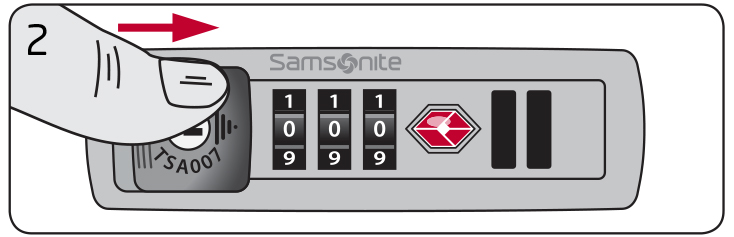

PULL LOCK UP
MOVE RED TAB UPWARDS
SET CHOSEN CODE

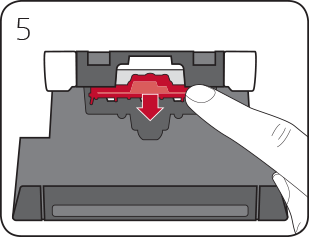

RETURN RED TAB TO ORIGINAL POSITION
COMPLETE
Top
FEATURED ON AERIS COMFORT AND MAGNUM ECO
SET CODE TO 000
PULL UP LOCK
MOVE RED TAB TO OPEN POSITION
SET CHOSEN CODE
RETURN RED TAB TO ORIGINAL POSITION
COMPLETE
Top
FEATURED ON CHRONOLITE
SET LOCK TO 000 & PUSH IN BUTTON WITH PEN
BUTTON AUTOMATICALLY STAYS PUSHED IN
SET CHOSEN CODE
RELEASE BY PRESSING TOP BUTTON
Top
FEATURED ON DURANXT LITE
SET CODE TO 000 AND USE PEN TO PUSH IN BUTTON
RELEASE THE PUN, BUTTON WILL STAY PUSHED IN
SET CHOSEN CODE
PUSH TOP BUTTON TO SET THE NEW CODE
TO SET THE CABLE LOCK WEAVE THE CABLE THROUGH THE ZIP RINGS
SECURE CABLE INTO COMBINATION LOCK
Top
FEATURED ON SAVIO LEATHER IV
SET LOCK TO 000 & PUSH IN BUTTON WITH PEN
BUTTON AUTOMATICALLY STAYS PUSHED IN
SET CHOSEN CODE
RELEASE BY PRESSING SIDE BUTTON
Top
FEATURED ON TRU FRAME
PRESS BUTTON IN TO RELEASE LOCK
SET CHOSEN CODE
TWIST LOCK INTO HOOK TO SECURE
PUSH INWARDS TO SET LOCK
